BenQ's affordable new 27"colour accurate monitor with USB-C & significantly improved quality all around. Validated by Pantone & Calman.
BenQ have taken their hugely successful SW2700PT and updated it significantly in both quality and feature terms.
They've taken everything we found less than perfect in the older model, and improved things substantially.
Pros over the BenQ SW2700PT:
The BenQ AQColor colour accurate monitor SW270C builds upon the success of its award-winning predecessor SW2700PT, and sets a new benchmark for wide gamut monitors upgrading image quality to the next level with HDR capabilities. The new 27” 2K QHD monitor with its edge-to-edge ultra slim bezels offers extraordinary clarity of fine details with 99% Adobe RGB, 97% P3, and 100% sRGB color space coverage as well as supports HDR content. The BenQ Uniformity Technology meticulously fine-tunes the color and the brightness at hundreds of sub-regions on the entire screen, offering screen-wide precise color from corner to corner for perfectly authentic and consistent viewing experience.
As the frontrunner of the professional monitor industry, BenQ has never slowed down but sought for further improvement for the photographers especially in the respect of the quality of color reproduction, viewing comfort, and convenience. Knowing that ambient lighting can obstruct color accuracy, all SW series photographer monitors include a detachable shading hood to reduce screen glare to deliver the most accurate colors. The newly-designed shading hood included in the SW270C box can be used in landscape orientation.
BenQ Team knows that a small detail can make a big difference. We’ve noticed that the coating of the monitor bezels can affect the photographer’s viewing experience. So BenQ Team has experimented with a variety of coatings, aiming to find the one that minimizes reflection to maintain the accuracy of the display. After extensive and intensive research, SW270C monitor implements a neutral grey coating on the surface to ensure the most optimal viewing experience for photography professionals.
In addition to coating changes, the monitor’s stand was refashioned in a minimalist style, with a sleek L-shaped neck that streamlines with the monitor frame to release more space on the workstation.
USB-C design provides a new connectivity option that is compatible with the latest Thunderbolt3/USB-C Mac and Windows laptops. To be ready to work is getting easier with one USB-C cable to deliver video, audio, data and power. The power delivery for SW270C is 60W.
The newly designed hotkey puck G2 provides the user with a convenient way to customize shortcuts to their preferred features on the OSD. With 3 single function keys as well as a rotation key, the user can designate them to three most frequently used features at work. The dial facilitates the photographer to quickly go through the OSD menu and set up their preferred brightness, contrast and volume of the monitor. The hotkey puck G2 is itself a hot key which increases user’s work efficiency and productivity with preferred settings in one gadget.
Wide Color Gamut
99% Adobe RGB, 97% P3 and 100% sRGB color space offers an impressive range of vibrant colors, particularly in reproducing shades of blue and green that are true to the original color.
2K QHD resolution provides extraordinary clarity of fine details and textures for an optimal viewing and visual-intensive work experience.
IPS technology enables wide viewing angles (178°/ 178°).
The 16-bit 3D Look Up Table (LUT) attains a color difference of Delta E≤2 in Adobe RGBand sRGB color spaces and improves RGB color blending and accuracy, resulting in impeccable color and gray tone reproduction.
2nd generation uniformity techology adjusts more detail, such as color and brightness, with hundreds of sub region cross the screen and applies for all color modes, including the calibration modes.
Video Format Support
Support 24P/25P with 4:4:4, 4:2:2, and 4:2:0 video formats to present the real content.
Hardware (HW) Calibration
To calibrate the monitor with a colorimeter allows you access to the internal image processing chip through BenQ’s Palette Master Element. Calibration is done on the internal image processing chip without affecting the graphics card setting.
High Dynamic Range (HDR) increases the overall dynamic range between black and white so the resulting image appears closer to what your eyes see in the natural world. SW270C can support the HDR signal from both HDMI and DisplayPort input.
One Cable Calibration
With USB Type-C cable, you will be able to conduct hardware calibration with ease. When doing color calibration, SW270C’s built-in USB-C input delivers video, audio and data contents as well as power with just one cable to bring ultimate convenience and simplicity to your workstation.
Hotkey Puck G2
The Hotkey Puck is a remote control that allows user to do the quick switch and control the OSD menu. 3 single function keys and rotation key and the dial allow user to do the customized settings.
Switch to PIP/PBP mode for multitasking in GamutDuo viewing. This mode enables you to simultaneously display content side-by-side in two different color spaces, such as Adobe RGB and sRGB.
The SW270C includes a detachable shading hood that effectively reduces the screen glare resulting from ambient lighting, ensuring superb color accuracy required for professional work. The shading hood can use landscape orientations.
Advanced Black & White Mode
This mode enables you to view your photos in a black and white film effect. Choose from three different black and white presets to preview your photos before you perform actual adjustments in your photo editing program.
Mac Thunderbolt Compatibility
This mode enables you to view your photos in a black and white film effect. Choose from three different black and white presets to preview your photos before you perform actual adjustments in your photo editing program.
SW270C’s USB-C port is compatible with the Thunderbolt 3* to transmit video, audio, data and power. Mac users can connect the SW270C display to the Mac laptop without concerns of compatibility.
*MacBook Pro 2017/2018 series are all embedded with Thunderbolt 3 (USB-C) ports
*Please purchase the USB-C cable certified by USB-IF. It’s full-featured with power delivery and video/audio/data transfer functions.
Calibrate with Palette Master Element (Basic Mode)
BenQ’s Palette Master Element is developed to do the hardware calibration and reliably produce accurate color results.
GamutDuo is one of the proudest features equipped in the SW270C. Users are able to view content simultaneously on one screen in different color gamut. The side-by-side comparison offers photographer a quick and easy comparison to spot the differences.
This year the SW270c display was granted a Verified by CalMAN mark. In close collaboration between BenQ and Portrait Displays, the Verified by CalMAN program ensures each display to be accurate out of the box and true to multiple industry-standard colour gamuts. The Verified by CalMAN mark is only given to the highest-grade of displays.
More information on the Verified by CalMAN program here.
As of 2019, BenQ announced that it's SW series of monitors became the world’s first stand-alone displays to earn the Pantone Validated status, ensuring colour-matched inter-operability with a plethora of production-grade colour output devices qualified by Pantone. Pantone Validated provides designers and photographers confidence in the Pantone colours rendered on-screen throughout their creative process, to better align materials in Pantone colours or simulations using Pantone-licensed output solutions.
Rigorously evaluated and approved by Pantone colour experts, BenQ SW monitors offer integrated colour correction and BenQ-exclusive AQCOLOR technology to guarantee superior fidelity in colour accuracy, including tested quality in achieving Pantone Matching System (PMS) colours. In use by virtually every colour-critical industry and manufacturer worldwide, the PMS system is a universal language of colour that allows creative professionals to specify and match specific colours, regardless of the equipment and materials used to produce the exact colour.
You can read more information on BenQ becoming Pantone Verified here.
Panel Size / Ratio
27" / 16:9 (1.78:1)
2560 * 1440
Direct Hardware Calibration?
In Built Sensor?
Adobe RGB 99%
This monitor supports Direct Hardware Calibration and comes with a license for a full version of BenQ's Palette Master Elements software to achieve this.
However a calibration sensor is not included, and needs to be purchased to take advantage of this system.
We recommend the i1Display Pro / Pro Plus.i1 Display Pro Plus
These calibrators are either simply not compatible, or do not measure current monitor technologies reliably. If you have one of these, it's time for an upgrade!i1 Display V1 & V2
Please note: Specifications are provided as a guide only.
We try very hard to keep these up to date and correct, but if a particular specification is really critical to you, then please double check the specification directly with the manufacturer. Some features may of course have caveats not fully described here.
To get more information about a particular specification, use the arrow to get a 'Specxplanation'.
Monitor panel sizes are measured across the diagonal, in inches.
They are approximate only, so the actual measurement might be 27.1" for example. Note that panel size in inches is only one part of the story - the other being the aspect ratio. For example a 24" monitors doesn't sound much bigger than a 23" monitor, but 24" monitors are normally 16:10 versus most 23" monitors being 16:9. This means a 24" monitor is much taller than a 23" and the working size is much greater than one inch difference would suggest.
The panel ratio gives the relative size of the horizontal to the vertical. Older monitors were 4:3, but most modern monitors are widescreen, with 16:10 or 16:9 being the common ratios. 16:10 is distinctly taller, and common with 24 and 30 inch monitors. 23 and 27 inch monitors are normally 16:9 - the same ratio as widescreen televisions. For monitors 24 inches and below, we recommend going with a 16:10 monitor if you can. Once you're over 24 inches you've got sufficient vertical working space it doesn't matter so much.
Native resolution is simply the number of pixels a monitor has, stated as horizontal x vertical.
LCD monitors really want to receive their native resolution and look pretty terrible when scaling other resolutions to the native resolution of the panel.
Most modern computers have no trouble outputting up to 2560 by 1600 (e.g. all Mac Pros/Macbooks/Minis/Airs etc. from the last 5 years or so can do this without issue, usually to 2 or more displays simultaneously). The only time it becomes particularly important is with older machines, particularly laptops, many have a maximum external display resolution of 1920 by 1200. If in doubt send us the full model number of your laptop and we can double check this for you!
There are three major types of monitor panels. IPS (aka PLS) - are the best for image makers. They have the best colour accuracy and uniformity characteristics. The can sometimes have weaker blacks, so gamers and video editors sometimes lean towards PVA monitors. However these days good IPS panels have excellent blacks so we recommend that all image makers use an IPS panel. The latest panel type, TN, is generally only used in laptops and low end devices and should avoided for imaging work at all costs!
The two major types of backlighting are CCFL (Flourescent tube based) and LED. CCFL is the older type of light source and offers good uniformity and it has been traditionally easier to engineer colour accuate monitors with flourescent tubes. However recent LED backlit monitors can be excellent - very uniform, and of course they use much less power. The latest LED backlit monitors from the good makers now offer excellent colour accuracy - at least as good as the older CCFL models.
LEDs also uses significantly less power (although CCFL monitors are already much better than old CRTs of course!) - and tend to have better uniformity.
Whether or not the unit needs a fan for cooling. Most monitors fortunately don't need a fan, rather using passive cooling through heatsinks and vents.
However, some monitors do require a fan, which can be of concern given the monitors proximity to your ears. Generally the fan will be a low dB fan not audible above a typical computer fan, but if ambient noise is of concern to you the we suggest you choose a monitor without a cooling fan.
Calibration is the process of calibrating directly into the monitor's hardware. This is both more accurate, and typically more easy to do, than traditional software calibration. See the 'Calibration Information' section above for more details about this monitor and calibration.
In built correction sensors come in two forms:
Until around 2010, almost all monitors were 'standard gamut' - meaning they could display a moderate range of colours (roughly around the size of the sRGB colour space). In recent years we've seen the development of wide gamut monitors that can display a much wider range of saturated colours (about 25% more) - equivalent to approximately the gamut of AdobeRGB.
We recommend wide gamut monitors for all image makers, but especially for anyone working regularly with saturated colour. Wide gamut monitors can also emulate standard gamut monitors very well, so it's more future proof to choose a wide gamut model, and there really aren't any disadvantages (apart from the generally higher price of wide gamut models!).
Does the monitor accept a 10 bit incoming video signal? 10 bit video signals allow for more tonal level separation (i.e. smoother gradients).
PC: 10 bit is well supported and relatively easy to achieve with 'workstation' graphic cards (short version: buy an nvidia Quadro video card!).
Mac: 10 bit has only just become supported in 2016 - you'll need very up to date Mac hardware, and the latest versions of OSX and your apps.
Our comprehensive article on 10 bit support has all the details.
The maximum achievable ratio of the brightness of a monitor's white to the depth of it's black. The stated figure is a maximum, achieved only when the monitor is running at high brightness in a darkened room.
A high contrast ratio makes things looks more contrasty (i.e. more 'pop') and is particularly of note with gaming, video, and image display scenarios. For example, if you're selling photos to clients straight off your screen, then high contrast has more wow factor.
However, for print work, it is typical practice to dramatically reduce the monitors contrast to as low as, say, 200:1 to better simulate paper. This is best done with monitors that feature direct hardware calibration support and allow you to specify the desired contrast ratio.
The maximum achievable brightness of the monitor in candellas per metre squared.
It is VERY unusual to run a monitor at maximum brightness, especially for imaging work.
The DCI (Digital Cinema Initiative) specifications requires contrast of 1500:1 or more.
Most LCD monitors do not yet offer DCI True Blacks support (in practice 'true blacks' means a very low black point suitable for video editing in a dim environment). This doesn't mean they have bad blacks in typical viewing environments, but it does mean you may experience some 'glow' in your blacks if you're viewing in a very dim environment.
Achieving very high contrast ratios is difficult and a combination of technologies is used - changes to the panel, light retardation film and backlight are all required.
This is really only of relevance in video work - in still image work, and particualrly for print, it is common practise to actually raise the monitor's black point above the minimum to better simulate the printed output.
The wider the better! But as usual, on paper specifications tell you just about nothing about the actual performance.
Viewing angle is the maximum angle at which a display can be viewed with 'acceptable visual performance'. In the context of this specification, all that means is that the 'contrast ratio remains above 10:1' (which is laughably low). This is really a meaningless specification with regards to the colour accuracy of a monitor when viewed off angle.
Thus, we don't place any credence in the manufacturer stated numbers. Simply though, IPS panels have the best viewing angles by far, and all IPS panels sold here all have (relative to low quality monitors) excellent viewing angles for this type of monitor, so you won't see significant variance as you move you head around under normal circumstances (movements of 15 or so degrees, say). In general you and a colleague could sit side by side (closely) and work acceptably together on an image. Beyond that, though, like all LCD monitors, accurate display will drop off very quickly once you move off angle. That is simply a fact of life with LCDs, even the best ones.
Ironically, monitors with lower black points tend to be slightly worse in this area (e.g. the CGX range from Eizo) - as often part of achieving the low blacks is the use of a polarising film over the panel. As anyone who has ever used a polarising filter with a camera knows, the effect of such a filter is highly directional. Thus as you move off axis, you will therefore see change more quickly.
The bit depth of the gamma Look Up Table. That is, the number of levels the gamma table can contain, which is crucial to the appropriate placement of tonal levels on screen. 8 bit is standard (although some appalling screens are only 6 bit!), but 10 bit or more is desirable, and the best monitors are now 14 or 16 bit.
The bit depth of the colour Look Up Tables. These are used to map incoming values from your computer to actual colours on the monitor's screen - so are of course crucial to colour accuracy. 8 bit is standard (although some appalling screens are only 6 bit!), but 10 bit or more is desirable, and the best monitors are now 14 or 16 bit. Ideally combined with 3D LUTs that can transform colours in more than one table at once.
Put simply the higher the bit depth of the LUT, the greater the capacity for accuracy.
3D Look Up Tables allow colour transformations to occur on R,G and B simultaneously, which increases speed and accuracy. Basically, a 3D LUT means better, more accurate calibrations. You want one even if it sounds like gibberish!
LCD Monitors coming off a production line typically exhibit some uniformity issues. Uniformity corrected monitors are broken into zones, measured, and each zone calibrated to be even with its neighbours (and you often get a written report of this process with very high end monitors like the Eizo CG series). Called DUE by Eizo, and most likely something else by others, it's an important part of the process of high end LCD making.
The process occurs at the begining of the monitor's life and there is currently no user system for correcting uniformity after the monitor is out in the field, although it is theoretically possible. Fortunately, moden monitors that leave the factory in a very uniform state tend to then remain uniform for many years of use.
Monitors that are not uniformity corrected may exhibit some visible artefacts like a change in density or colour across the field of the monitor. Wtih brands like Eizo and NEC, the non uniformity tends to be minor.
How quickly a pixel can change colour, in milliseconds (usually measured as grey-to-grey, but there's no real standard).
Basically, any value 16 or under is generally fine for all normal uses. Exceptions are high end gaming and possibly video production - but it's rare anything below 10 makes a significant difference, and monitors with very low response times typically sacrifice a lot of colour quality to achieve this.
Can the monitor play back a 24p video signal (i.e. 24 frames a second) - without visible motion artefacts?
Typical desktop monitors either refuse a 24p signal altogether, or force all inputs to 60hz, remapping different frame rates like 24p to 60 frames per second (usually using a technique known as 3:2 pull-down). Unfortunately, because 60 is not evenly divisible by 24, this causes significant visible motion artefacts.
A monitor with 24p support is able to play back 24p sources at either the native 24 frames a second, or using simple frame doubling/tripling to play back these sources as 48 or 72Hz. This results in smooth motion without new artefacts (n.b. - artefacts inherent to 24p, like some juddering during slow pans, remains of course, as this is inherent in the low frame rate of the original filming - but it's this low frame rate that gives the 'film like' look.
More about 24p on Wikipedia.

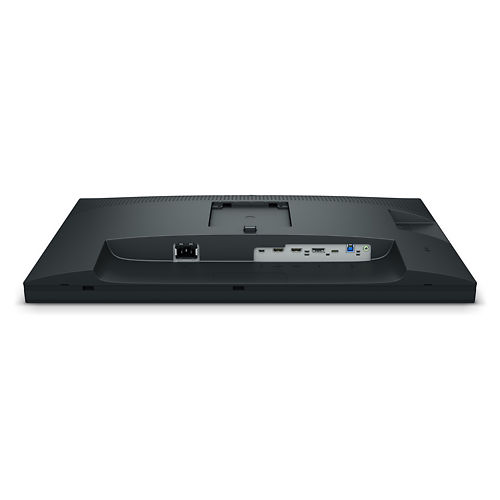

The input ports a monitor has. We have a comprehensive article about these (with pictures!) - here.
Other connections the monitor offers - such as audio connectors if the monitor has speakers (most don't) - and USB hubs. Some USB hubs also act as 'KVMs' - meaning you can plug your mouse and keyboard into the monitor, then the monitor into two separate computers and easily share your peripherals and screen between the two machines.
How much power the monitor draws. Often stated only as peak power usage, the real figure in practise may be lower.
Lower is better, both for your electricity bill and the planet, but typical figures of around 100W means that your monitor uses about the same as two standard downlights, so modern monitors are really very efficient compared to the hundreds of watts those old CRT clunkers used!
If a monitor hood is not included, then there are [LINK] aftermarket hoods available.
Monitor hoods stop direct light falling on the monitor which can make, in particular, shadow details harder to perceive. While not essential, once you get used to having one it's hard to go back to a screen without one - they improve the picture generally and provide a real 'window in to your image' effect.
Most colour accurate monitors don't have in built speakers.
Those that do offer speakers usually connect via 3.5mm jack (see connections), and the speaker output is usually around the 1-2w range. Fine for basic system sounds but not great for music etc.
Can the monitor be rotated on its stand 90 degrees and used in portrait orientation? Particularly useful if you're doing portrait work on smaller screens!
If the monitor & stand support this then you just rotate the screen physically and instruct your video card to flip the image 90 degrees (if you bind this to an F key on your keyboard it can be a very simple process!).
We keep these details up to date to the best of our knowledge.
However if a particular item is of special importance to you please also check the manufacturer's listing for the product.
