27 inch, 2.5K version of Eizo's flagship CG self-calibrating monitors. For creative professionals in any graphic arts/video field.
This model is the replacement to the venerable and pretty much industry standard CG2730/CG279X models, and combines the features of both and a spiffy new design to make for a fantastic package. If you can't afford or don't need/want 4K, then this is the professional level visual arts monitor to buy.
This flagship 27-inch monitor marks a new generation of ColorEdge with a new exterior design. With 2K WQHD (2560 x 1440) resolution, 400 cd/m2 high brightness, and HDR gamma support, the monitor reproduces content in remarkable detail. USB Type-C connectivity provides a streamlined experience so professionals in video editing, game development, photography, and more can focus on creating.
2K WQHD Resolution
The ColorEdge CG2700S displays at 2K WQHD (2560 x 1440) resolution. The 27-inch screen provides ample space for displaying Full HD content in full with enough space to show toolbars, palettes, and other windows or applications. This makes the monitor versatile for video editing, 3DCG creation, game development, photography, and other creative fields. EIZO also offers a 4K UHD (3840 x 2160) model with the ColorEdge CG2700X, for creators focused on 4K content.
Single Cable Connection with USB Type-C
The ColorEdge CG2700s features USB Type-C connectivity that allows you to display video, transmit USB signals, and supply power to a connected device such as a tablet or notebook PC. This convenient multi-purpose connectivity makes it faster and easier to connect when moving between workstations or working remotely.
The ColorEdge CG2700s reliably charges a MacBook Pro or other high-end laptops with 92 W power delivery. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on the desk.
Stable Network Connection
While many modern laptops are not equipped with a dedicated LAN port, the monitor has one directly built in for stable wired connection. Connecting a laptop via USB Type-C provides access to the network through the monitor for sharing creative assets and files, carrying out post production work remotely, and enables network-based colour management via ColorNavigator Network.
Built-In Sensor to Automate Your Workflow
ColorEdge were the first monitors in the world to have a built-in calibration sensor for colour critical applications. The ColorEdge CG2700s's built-in sensor can be set to calibrate the monitor automatically at designated times. This eliminates the need for a third-party calibration device and ensures your screen stays colour-accurate. In addition, the sensor swings onto the screen, taking up minimal space and allowing you to continue working even during calibration.
ColorNavigator 7 Color Management Software
A monitor needs to be calibrated at regular intervals to maintain colour accuracy. EIZO's proprietary ColorNavigator 7 software provides an intuitive and highly precise solution to colour management. It allows you to schedule automatic recalibration, calibrate all colour modes simultaneously, and conduct correlation with external sensors to match the studio's internal colour management framework. Calibration information is saved to the monitor instead of the operating system so users do not have to recalibrate even when using a different PC.
ColorNavigator Network Colour Management Software
ColorNavigator Network provides centralized quality control (QC) of ColorEdge monitors for studios, printing houses, and other enterprises with multiple creators and editors who work on shared projects. With NetAgent or ColorNavigator 7 installed on the workstation, administrators can manage multiple ColorEdge monitors via web browser enabling quality control even from remote locations. ColorNavigator Network is hosted on a secure cloud server to free you from the initial investment and running costs of providing your own server.
Vivid Colours Reproduced to Industry Standards
The monitor's wide colour gamut faithfully reproduces 98% of the DCI-P3 standard used in digital cinema and supports the BT.2020 standard used in broadcasting. In addition, it covers 99% of the Adobe RGB colour space so images shot in Adobe RGB will be displayed correctly. It also covers almost the entire ISO-coated and US web-coated CMYK colour spaces used in printing.
3D LUT for Accurate Colour Display
The monitor uses a 3D LUT which adjusts colours individually on an RGB cubic table. With the supported ColorNavigator 7 software’s emulation function, creators can check how content will appear to their audience. The 3D LUT also improves the monitor's additive colour mixture (combination of RGB), which is a key factor in its ability to display neutral grey tones.
10-Bit Simultaneous Display
Using the DisplayPort or HDMI input, the ColorEdge monitor offers 10-bit simultaneous display* from a 16-bit look-up-table (LUT) which means it can show more than one billion colours simultaneously. This is 64 times more colours than you get with 8-bit display, resulting in smooth colour gradations and reduced Delta-E between two adjacent colours.
*A graphics board and software which support 10-bit output are also necessary for 10-bit display. Equipment that supports DeepColor is required for 10-bit display when connected via HDMI.
Broadcast and Cinema Presets
Preset modes for DCI-P3, BT.709, and BT.2020 ensure you can work in the appropriate colour spaces and gamma values. In addition, preset modes for PQ (DCI and BT.2100) and HLG (BT.2100) are available for viewing HDR content. With the built-in calibration sensor, you can conveniently adjust or maintain the brightness setting for each preset.
HDR Gamma Support
The ColorEdge CG2700s features a high brightness level of 400 cd/m2. It supports HLG (hybrid log-gamma) and the PQ (perceptual quantization) curve for displaying and editing HDR (high dynamic range) video content. The optimized gamma curves render images to appear more true to how the human eye perceives the real world compared to SDR (standard dynamic range). This ensures professional creators can reliably display HDR content for editing and colour grading.
True Black Display
In compliance with the DCI standard, the monitor offers a high contrast ratio of 1600:1* for producing true blacks that are otherwise difficult to display on a typical LCD monitor. CG Series monitors are also equipped with a retardation film which allows tones to retain their depth even when viewed from an angle.
*Typical value when DUE Priority is set to "Brightness".
The monitor includes a function that shows the areas of the image that cannot be displayed correctly at the current brightness settings. These areas are marked in yellow or magenta and can be viewed for brightness levels of 300, 500, 1000, and 4000 cd/m2.
BT.709 Out of Gamut Warning
The monitor includes a Gamut Warning preset that when selected, indicates areas of a BT.2020 image that cannot be reproduced using BT.709 by converting them to shades of grey. An additional mode called BT.709 Clipping allows the editor to view BT.2020 images within the BT.709 colour space, simulating how it would look to their audience in an HDTV environment.
Automatic Colour Settings
To ensure colour settings stay consistent throughout production, the monitor includes a Sync Signal function which automatically adjusts the monitor's settings, such as input range and input colour format, according to the video signal.
Adjusted at the Factory for Smooth Colour Gradations
The gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 16-bit look-up-table (LUT) to select the 256 most appropriate tones and achieve the desired value. This ensures the smoothest colour gradations in your images.
Stable Colour in Just 3 Minutes
A typical monitor takes 30 minutes or more for its brightness, chromaticity, and tone characteristics to stabilize. The ColorEdge CG2700s takes a mere 3 minutes. Whether you are working in a studio or taking the monitor with you on location, you get reliable colour display soon after turning the monitor on.
Stable Display Using Industry-First AI
The colour and brightness of an LCD monitor can shift due to changes in ambient temperature and the temperature of the monitor itself. ColorEdge CG Series monitors are equipped with a temperature sensor for accurately measuring the temperature inside the monitor, as well as estimating the temperature of the surrounding environment. With this temperature sensing and estimation technology, the monitor adjusts in real-time so gradations, colour, brightness, and other characteristics continue to be displayed accurately. Furthermore, EIZO uses AI (artificial intelligence) in the estimation algorithm of the CG2700s so it can distinguish between various temperature changing patterns to calculate even more accurate correction.
Uniformity Across the Screen
LCD monitors commonly exhibit fluctuations in brightness and chromaticity across the screen, affecting colour accuracy. To counter this, ColorEdge monitors are equipped with EIZO's patented digital uniformity equalizer (DUE) technology which corrects deviations in every tone across the screen to ensure stable display.
Punched Metal Design
The ColorEdge CG2700S's sleek, new design incorporates punched metal on the back side that allows for more airflow, keeping the monitor cool without a noisy fan. A carrying handle on the back of the monitor allows you to easily move it to other locations.

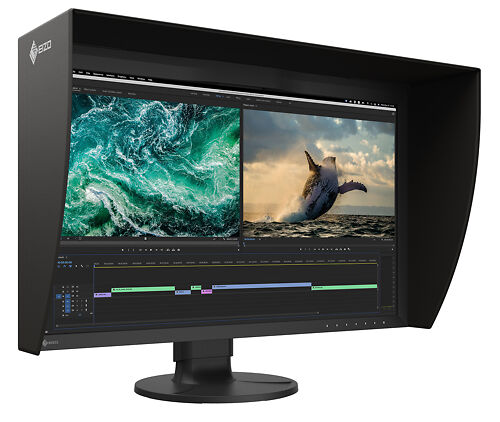

Light Shielding Hood
The ColorEdge CG2700S comes bundled with a light shielding hood that effectively prevents glare on the screen caused by ambient lighting. The hood is newly designed to be lightweight and easily attaches to the monitor magnetically without needing to connect separate parts.

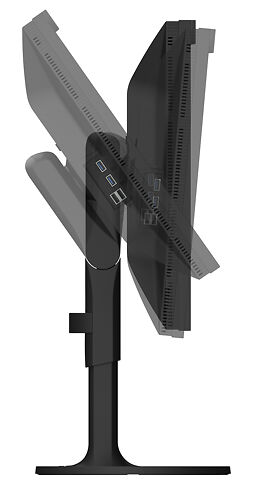

Adjust the screen to the most comfortable angle and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments. The stand is also equipped with a quick release that allows you to easily remove the screen from the stand with a single touch.

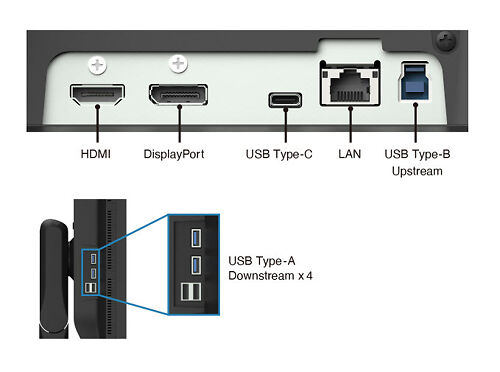

In addition to USB Type-C, the monitor is equipped with DisplayPort and HDMI inputs. It also includes four USB ports (USB 3.1 Gen 1: Type A x 2, USB 2.0: Type-A x 2) for connecting additional devices or peripherals.
Eco-Friendly Cable Packaging
In a shift towards increasingly more sustainable manufacturing practices, the cables included with the monitor are wrapped in environmentally friendly pulp sheet instead of plastic bags.
Panel Size / Ratio
27" / 16:9 (1.78:1)
2560 * 1440
Direct Hardware Calibration?
In Built Sensor?
Adobe RGB: 99%, DCI-P3: 98%
This monitor supports Direct Hardware Calibration. It includes a built-in full calibration sensor.
This is the ideal way to calibrate a monitor - it's easy, fully automatic, and can be scheduled to occur even when you're not present and your computer is switched off! Simply set it up once and enjoy accurate colour with no further intervention for years to come!
An external calibrator is not required. However, if you wish to, you can cross correlate with an external calibrator. We list recommended models here. You would only do this under special circumstances.
We recommend the ColorChecker Display Pro / Plus (AKA i1Display Pro / Pro Plus).ColorChecker Display Plus (AKA i1 Display Pro Plus)
These calibrators are either simply not compatible, or do not measure current monitor technologies reliably. If you have one of these, it's time for an upgrade!i1 Display V1 & V2
Please note: Specifications are provided as a guide only.
We try very hard to keep these up to date and correct, but if a particular specification is really critical to you, then please double check the specification directly with the manufacturer. Some features may of course have caveats not fully described here.
To get more information about a particular specification, use the arrow to get a 'Specxplanation'.
Monitor panel sizes are measured across the diagonal, in inches.
They are approximate only, so the actual measurement might be 27.1" for example. Note that panel size in inches is only one part of the story - the other being the aspect ratio. For example a 24" monitors doesn't sound much bigger than a 23" monitor, but 24" monitors are normally 16:10 versus most 23" monitors being 16:9. This means a 24" monitor is much taller than a 23" and the working size is much greater than one inch difference would suggest.
The panel ratio gives the relative size of the horizontal to the vertical. Older monitors were 4:3, but most modern monitors are widescreen, with 16:10 or 16:9 being the common ratios. 16:10 is distinctly taller, and common with 24 and 30 inch monitors. 23 and 27 inch monitors are normally 16:9 - the same ratio as widescreen televisions. For monitors 24 inches and below, we recommend going with a 16:10 monitor if you can. Once you're over 24 inches you've got sufficient vertical working space it doesn't matter so much.
Native resolution is simply the number of pixels a monitor has, stated as horizontal x vertical.
LCD monitors really want to receive their native resolution and look pretty terrible when scaling other resolutions to the native resolution of the panel.
Most modern computers have no trouble outputting up to 2560 by 1600 (e.g. all Mac Pros/Macbooks/Minis/Airs etc. from the last 5 years or so can do this without issue, usually to 2 or more displays simultaneously). The only time it becomes particularly important is with older machines, particularly laptops, many have a maximum external display resolution of 1920 by 1200. If in doubt send us the full model number of your laptop and we can double check this for you!
There are three major types of monitor panels. IPS (aka PLS) - are the best for image makers. They have the best colour accuracy and uniformity characteristics. The can sometimes have weaker blacks, so gamers and video editors sometimes lean towards PVA monitors. However these days good IPS panels have excellent blacks so we recommend that all image makers use an IPS panel. The latest panel type, TN, is generally only used in laptops and low end devices and should avoided for imaging work at all costs!
The two major types of backlighting are CCFL (Flourescent tube based) and LED. CCFL is the older type of light source and offers good uniformity and it has been traditionally easier to engineer colour accuate monitors with flourescent tubes. However recent LED backlit monitors can be excellent - very uniform, and of course they use much less power. The latest LED backlit monitors from the good makers now offer excellent colour accuracy - at least as good as the older CCFL models.
LEDs also uses significantly less power (although CCFL monitors are already much better than old CRTs of course!) - and tend to have better uniformity.
Whether or not the unit needs a fan for cooling. Most monitors fortunately don't need a fan, rather using passive cooling through heatsinks and vents.
However, some monitors do require a fan, which can be of concern given the monitor's proximity to your ears. Generally the fan will be a low dB fan not audible above a typical computer fan, but if ambient noise is of concern to you the we suggest you choose a monitor without a cooling fan.
Calibration is the process of calibrating directly into the monitor's hardware. This is both more accurate, and typically more easy to do, than traditional software calibration. See the 'Calibration Information' section above for more details about this monitor and calibration.
In built correction sensors come in two forms:
Until around 2010, almost all monitors were 'standard gamut' - meaning they could display a moderate range of colours (roughly around the size of the sRGB colour space). In recent years we've seen the development of wide gamut monitors that can display a much wider range of saturated colours (about 25% more) - equivalent to approximately the gamut of AdobeRGB.
We recommend wide gamut monitors for all image makers, but especially for anyone working regularly with saturated colour. Wide gamut monitors can also emulate standard gamut monitors very well, so it's more future proof to choose a wide gamut model, and there really aren't any disadvantages (apart from the generally higher price of wide gamut models!).
Does the monitor accept a 10 bit incoming video signal? 10 bit video signals allow for more tonal level separation (i.e. smoother gradients).
PC: 10 bit is well supported and relatively easy to achieve with 'workstation' graphic cards (short version: buy an NVIDIA Quadro video card!). Since about 2020, even most modern consumer video cards now support 10 bit, but the consumer cards with their gaming optimised drivers do tend to be a lot more buggy.
Mac: 10 bit has been supported across the Mac lines since around 2016.
Note that there are often caveats to this support - such as 10 bit being available only on DisplayPort and not HDMI for UHD inputs, for example.
Do make sure you check the manufacturer's specifications very carefully if you have a particular requirement - like e.g. 10 bit over HDMI at 4K/60Hz.
Our comprehensive article on 10 bit support has more details. Important to note, also, that whilst 10 bit is definitely 'better' - in 20 years of professional imaging work, we have never really seen it make a practical difference to typical tasks (with the possible exception of HDR grading work).
The maximum achievable ratio of the brightness of a monitor's white to the depth of it's black. The stated figure is a maximum, achieved only when the monitor is running at high brightness in a darkened room.
A high contrast ratio makes things looks more contrasty (i.e. more 'pop') and is particularly of note with gaming, video, and image display scenarios. For example, if you're selling photos to clients straight off your screen, then high contrast has more wow factor.
However, for print work, it is typical practice to dramatically reduce the monitors contrast to as low as, say, 200:1 to better simulate paper. This is best done with monitors that feature direct hardware calibration support and allow you to specify the desired contrast ratio.
The maximum achievable brightness of the monitor in candellas per metre squared.
It is VERY unusual to run a monitor at maximum brightness, especially for imaging work.
The DCI (Digital Cinema Initiative) specifications requires contrast of 1500:1 or more.
Most LCD monitors do not yet offer DCI True Blacks support (in practice 'true blacks' means a very low black point suitable for video editing in a dim environment). This doesn't mean they have bad blacks in typical viewing environments, but it does mean you may experience some 'glow' in your blacks if you're viewing in a very dim environment.
Achieving very high contrast ratios is difficult and a combination of technologies is used - changes to the panel, light retardation film and backlight are all required.
This is really only of relevance in video work - in still image work, and particualrly for print, it is common practise to actually raise the monitor's black point above the minimum to better simulate the printed output.
The wider the better! But as usual, on paper specifications tell you just about nothing about the actual performance.
Viewing angle is the maximum angle at which a display can be viewed with 'acceptable visual performance'. In the context of this specification, all that means is that the 'contrast ratio remains above 10:1' (which is laughably low). This is really a meaningless specification with regards to the colour accuracy of a monitor when viewed off angle.
Thus, we don't place any credence in the manufacturer stated numbers. Simply though, IPS panels have the best viewing angles by far, and all IPS panels sold here all have (relative to low quality monitors) excellent viewing angles for this type of monitor, so you won't see significant variance as you move you head around under normal circumstances (movements of 15 or so degrees, say). In general you and a colleague could sit side by side (closely) and work acceptably together on an image. Beyond that, though, like all LCD monitors, accurate display will drop off very quickly once you move off angle. That is simply a fact of life with LCDs, even the best ones.
Ironically, monitors with lower black points tend to be slightly worse in this area (e.g. the CGX range from Eizo) - as often part of achieving the low blacks is the use of a polarising film over the panel. As anyone who has ever used a polarising filter with a camera knows, the effect of such a filter is highly directional. Thus as you move off axis, you will therefore see change more quickly.
How quickly a pixel can change colour, in milliseconds (usually measured as grey-to-grey, but there's no real standard).
Basically, any value 16 or under is generally fine for all normal uses. Exceptions are high end gaming and possibly video production - but it's rare anything below 10 makes a significant difference, and monitors with very low response times typically sacrifice a lot of colour quality to achieve this.
Can the monitor play back a 24p video signal (i.e. 24 frames a second) - without visible motion artefacts?
Typical desktop monitors either refuse a 24p signal altogether, or force all inputs to 60hz, remapping different frame rates like 24p to 60 frames per second (usually using a technique known as 3:2 pull-down). Unfortunately, because 60 is not evenly divisible by 24, this causes significant visible motion artefacts.
A monitor with 24p support is able to play back 24p sources at either the native 24 frames a second, or using simple frame doubling/tripling to play back these sources as 48 or 72Hz. This results in smooth motion without new artefacts (n.b. - artefacts inherent to 24p, like some juddering during slow pans, remains of course, as this is inherent in the low frame rate of the original filming - but it's this low frame rate that gives the 'film like' look.
More about 24p on Wikipedia.
The bit depth of the colour Look Up Tables. These are used to map incoming values from your computer to actual colours on the monitor's screen - so are of course crucial to colour accuracy. 8 bit is standard (although some appalling screens are only 6 bit!), but 10 bit or more is desirable, and the best monitors are now 14 or 16 bit. Ideally combined with 3D LUTs that can transform colours in more than one table at once.
Put simply the higher the bit depth of the LUT, the greater the capacity for accuracy.
3D Look Up Tables allow colour transformations to occur on R,G and B simultaneously, which increases speed and accuracy. Basically, a 3D LUT means better, more accurate calibrations. You want one even if it sounds like gibberish!
LCD Monitors coming off a production line typically exhibit some uniformity issues. Uniformity corrected monitors are broken into zones, measured, and each zone calibrated to be even with its neighbours (and you often get a written report of this process with very high end monitors like the Eizo CG series). Called DUE by Eizo, and most likely something else by others, it's an important part of the process of high end LCD making.
The process occurs at the begining of the monitor's life and there is currently no user system for correcting uniformity after the monitor is out in the field, although it is theoretically possible. Fortunately, moden monitors that leave the factory in a very uniform state tend to then remain uniform for many years of use.
Monitors that are not uniformity corrected may exhibit some visible artefacts like a change in density or colour across the field of the monitor. Wtih brands like Eizo and NEC, the non uniformity tends to be minor.
The input ports a monitor has. We have a comprehensive article about these (with pictures!) - here.
We've listed them here in our generally recommended order - that is, we recommend USB-C / DisplayPort / HDMI / Other...in that order, if the computer and monitor have the appropriate options.
Note that for USB-C ports that offer power delivery back to your laptop, we just list an approximate figure here - normally the monitor description text above has more details (e.g. this specification might say approximately 60W, when in fact it is 50W or 70W, say).
Other connections the monitor offers - such as card readers, audio connectors (for audio going in and/or out) - and USB ports.
Up here indicates an upstream port - meaning when you run a connection from your computer to the monitor.
Down indicates a downstream port - meaning you can plug something into this port (like e.g. a mouse, or a USB card reader).
Note, USB-C ports can be both upstream and downstream, and are thus often listed both ways, although there may be just one physical port.
A good way of double checking the ports on offer is to cycle through the product images above - we try and make sure each monitor listing has a picture of the available ports as well as the information here.
Some USB ports/hubs also act as proper 'KVMs' - meaning you can plug your mouse and keyboard into the monitor, then the monitor into two separate computers and easily share your peripherals and screen between the two machines. If proper 'KVM' support is something you need, review the manufacturer specs (linked below) to be sure this monitor can support your intended use case.
If a monitor hood is not included, then there are [LINK] aftermarket hoods available.
Monitor hoods stop direct light falling on the monitor which can make, in particular, shadow details harder to perceive. While not essential, once you get used to having one it's hard to go back to a screen without one - they improve the picture generally and provide a real 'window in to your image' effect.
Most colour accurate monitors don't have in built speakers.
Those that do offer speakers usually connect via 3.5mm jack (see connections), and the speaker output is usually around the 1-2w range. Fine for basic system sounds but not great for music etc.

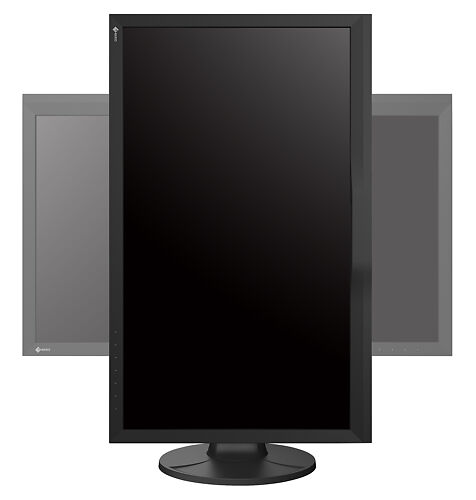

Can the monitor be rotated on its stand 90 degrees and used in portrait orientation? Particularly useful if you're doing portrait work on smaller screens!
If the monitor & stand support this then you just rotate the screen physically and instruct your video card to flip the image 90 degrees (if you bind this to an F key on your keyboard it can be a very simple process!).
