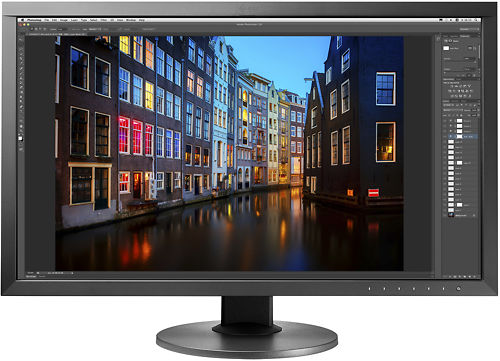

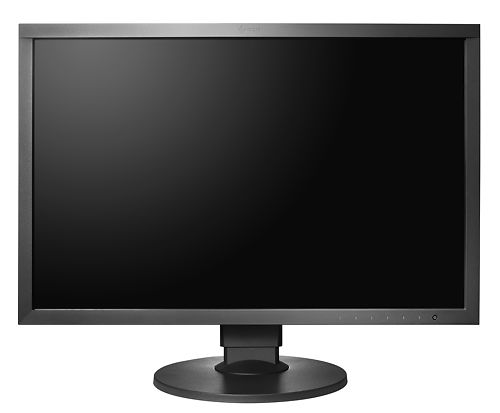

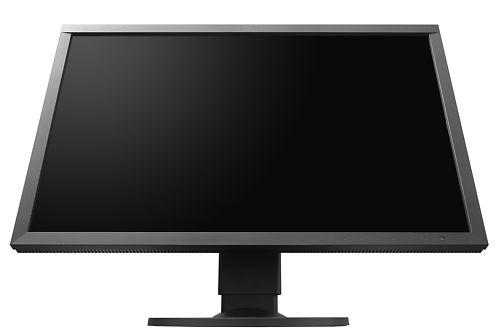

The very popular CS2420 - a perfect entry level professional 24" monitor with direct hardware calibration & a wide colour gamut!
We think this is a really exciting development in monitors - an affordable, premium grade monitor with wide gamut and direct hardware calibration support, and from the best brand in the business.
The CS2420 is a perfect entry level professional monitor made specificially for photographers and designers and notably this new model now features a wide colour gamut - 99% of AdobeRGB. Direct Hardware Calibration is also supported with the included Color Navigator software, you just need to add a compatible sensor. We recommend the X-rite i1 Display Pro as it's very accurate, but you can opt for Eizo's EX2 sensor (a re-badged Spyder) - which is quite good too and cost effective.
Thanks to the LED backlight and Eizo's DUE uniformity correction, the panel is very even across it's field. The screen coating is a very high quality anti-glare matte coating.
All Eizo ColourEdge monitors come backed by a manufacturer’s five-year warranty.
About the CS2420, Eizo say:
The ColorEdge CS2420, complete with a sleek, user-friendly design, packed with the features you need for creative work.
The ideal entry-level monitor for hobbyists and prosumers. Featuring a sleek, user-friendly design and many of the advanced features of EIZO's ColorEdge lineup, you can enjoy creating and editing digital photography, illustration, and more.
Vivid Colours Reproduced to Industry Standards
The wide colour gamut of the ColorEdge CS2420 reproduces almost the entire Adobe RGB colour space so images shot in Adobe RGB will be displayed correctly. Photos of vibrant blue skies and lush green forests are reproduced faithfully in a way that monitors limited to an sRGB colour space cannot display. The wide colour gamut also ensures reproduction of almost the entire ISO-coated and US web-coated CMYK colour spaces used in printing.
10-bit Simultaneous Display
Using the DisplayPort or HDMI inputs, the ColorEdge CS2420 offers 10-bit simultaneous display* from a 16-bit look-up-table (LUT) which means it can show more than one billion colours simultaneously. This is 64 times more colours than you get with 8-bit display, resulting in smooth colour gradations and reduced Delta-E between two adjacent colours.
*A graphics board and software which support 10-bit output are also necessary for 10-bit display. Equipment that supports Deep Color is necessary with the HDMI inputs.
Adjusted at the Factory for Smooth Colour Gradations
The gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 16-bit look-up-table (LUT) to select the most appropriate tones and achieve the desired value. This ensures the smoothest colour gradations in your images.
Uniformity Across the Screen
Fluctuations in brightness and chromaticity on different parts of the screen are a common trait of LCD monitors. To counteract this, ColorEdge monitors are equipped with EIZO's patented digital uniformity equalizer (DUE) technology to ensure stable image display and counterbalance the influences that a fluctuating temperature may have on colour temperature and brightness for stable image display.
Wide Viewing Angles with IPS Panel
The 178° wide viewing angles afforded by the IPS panel technology allow two or more people to view the screen at once with little change in colour or contrast.
Seamless Electrostatic Switches
The flat design uses electrostatic switches on the front bezel in place of traditional buttons for seamless access to monitor settings.
Easy-Access USB Ports
The monitor is equipped with three easy-to-access USB 3.0 ports, including one port for battery charging devices such as a smartphone.
Minimized Reflections with Non-Glare Panel
The monitor is equipped with an IPS non-glare panel for high visibility. It also uses dimming technology to minimize flicker and help prevent eye fatigue for a more comfortable working environment.
DisplayPort, HDMI, and DVI-D inputs are included and support various types of graphics boards. The HDMI input also offers direct connection with digital cameras.
I/P Conversion for Flicker-Free Display
The HDMI input of the ColorEdge CS2420 supports I/P (interlace/progressive) conversion for converting the interlace signals from TV and video into progressive signals for flicker-free display.
The slim cabinet features unobtrusive frames that are 39% slimmer than its predecessor's so you can focus more on the screen.
Built-in Carrying Handle
A carrying handle on the back of the monitor allows you to easily move it from one location to another.
Ergonomic Stand for Comfort and Convenience
Adjust the screen to the most comfortable angle and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments as well as portrait display.
Light-Shielding Hood – Available as add on
An optional shading hood is available that effectively prevents glare on the monitor's screen caused by ambient lighting. The hood is designed to “stick” to the monitor magnetically. This means you can attach the hood quickly and easily without needing to connect separate parts.
Panel Size / Ratio
24" / 16:10 (1.6:1)
1920 * 1200
Direct Hardware Calibration?
In Built Sensor?
Adobe RGB: 99%

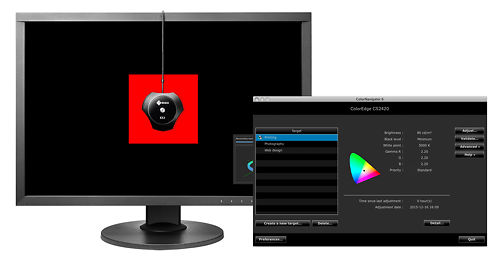

This monitor supports Direct Hardware Calibration and comes with a full version of ColorNavigator to achieve this.
However a calibration sensor is not included and needs to be purchased to take advantage of this system.
We recommend the i1Display Pro.i1 Display Pro
These calibrators are either simply not compatible, or do not measure current monitor technologies reliably. If you have one of these, it's time for an upgrade!i1 Display Pro Plus
Please note: Specifications are provided as a guide only.
We try very hard to keep these up to date and correct, but if a particular specification is really critical to you, then please double check the specification directly with the manufacturer. Some features may of course have caveats not fully described here.
To get more information about a particular specification, use the arrow to get a 'Specxplanation'.
Monitor panel sizes are measured across the diagonal, in inches.
They are approximate only, so the actual measurement might be 27.1" for example. Note that panel size in inches is only one part of the story - the other being the aspect ratio. For example a 24" monitors doesn't sound much bigger than a 23" monitor, but 24" monitors are normally 16:10 versus most 23" monitors being 16:9. This means a 24" monitor is much taller than a 23" and the working size is much greater than one inch difference would suggest.
The panel ratio gives the relative size of the horizontal to the vertical. Older monitors were 4:3, but most modern monitors are widescreen, with 16:10 or 16:9 being the common ratios. 16:10 is distinctly taller, and common with 24 and 30 inch monitors. 23 and 27 inch monitors are normally 16:9 - the same ratio as widescreen televisions. For monitors 24 inches and below, we recommend going with a 16:10 monitor if you can. Once you're over 24 inches you've got sufficient vertical working space it doesn't matter so much.
Native resolution is simply the number of pixels a monitor has, stated as horizontal x vertical.
LCD monitors really want to receive their native resolution and look pretty terrible when scaling other resolutions to the native resolution of the panel.
Most modern computers have no trouble outputting up to 2560 by 1600 (e.g. all Mac Pros/Macbooks/Minis/Airs etc. from the last 5 years or so can do this without issue, usually to 2 or more displays simultaneously). The only time it becomes particularly important is with older machines, particularly laptops, many have a maximum external display resolution of 1920 by 1200. If in doubt send us the full model number of your laptop and we can double check this for you!
There are three major types of monitor panels. IPS (aka PLS) - are the best for image makers. They have the best colour accuracy and uniformity characteristics. The can sometimes have weaker blacks, so gamers and video editors sometimes lean towards PVA monitors. However these days good IPS panels have excellent blacks so we recommend that all image makers use an IPS panel. The latest panel type, TN, is generally only used in laptops and low end devices and should avoided for imaging work at all costs!
The two major types of backlighting are CCFL (Flourescent tube based) and LED. CCFL is the older type of light source and offers good uniformity and it has been traditionally easier to engineer colour accuate monitors with flourescent tubes. However recent LED backlit monitors can be excellent - very uniform, and of course they use much less power. The latest LED backlit monitors from the good makers now offer excellent colour accuracy - at least as good as the older CCFL models.
LEDs also uses significantly less power (although CCFL monitors are already much better than old CRTs of course!) - and tend to have better uniformity.
Whether or not the unit needs a fan for cooling. Most monitors fortunately don't need a fan, rather using passive cooling through heatsinks and vents.
However, some monitors do require a fan, which can be of concern given the monitors proximity to your ears. Generally the fan will be a low dB fan not audible above a typical computer fan, but if ambient noise is of concern to you the we suggest you choose a monitor without a cooling fan.
Calibration is the process of calibrating directly into the monitor's hardware. This is both more accurate, and typically more easy to do, than traditional software calibration. See the 'Calibration Information' section above for more details about this monitor and calibration.
In built correction sensors come in two forms:
Until around 2010, almost all monitors were 'standard gamut' - meaning they could display a moderate range of colours (roughly around the size of the sRGB colour space). In recent years we've seen the development of wide gamut monitors that can display a much wider range of saturated colours (about 25% more) - equivalent to approximately the gamut of AdobeRGB.
We recommend wide gamut monitors for all image makers, but especially for anyone working regularly with saturated colour. Wide gamut monitors can also emulate standard gamut monitors very well, so it's more future proof to choose a wide gamut model, and there really aren't any disadvantages (apart from the generally higher price of wide gamut models!).
Does the monitor accept a 10 bit incoming video signal? 10 bit video signals allow for more tonal level separation (i.e. smoother gradients).
PC: 10 bit is well supported and relatively easy to achieve with 'workstation' graphic cards (short version: buy an nvidia Quadro video card!).
Mac: 10 bit has only just become supported in 2016 - you'll need very up to date Mac hardware, and the latest versions of OSX and your apps.
Our comprehensive article on 10 bit support has all the details.
The maximum achievable ratio of the brightness of a monitor's white to the depth of it's black. The stated figure is a maximum, achieved only when the monitor is running at high brightness in a darkened room.
A high contrast ratio makes things looks more contrasty (i.e. more 'pop') and is particularly of note with gaming, video, and image display scenarios. For example, if you're selling photos to clients straight off your screen, then high contrast has more wow factor.
However, for print work, it is typical practice to dramatically reduce the monitors contrast to as low as, say, 200:1 to better simulate paper. This is best done with monitors that feature direct hardware calibration support and allow you to specify the desired contrast ratio.
The maximum achievable brightness of the monitor in candellas per metre squared.
It is VERY unusual to run a monitor at maximum brightness, especially for imaging work.
The DCI (Digital Cinema Initiative) specifications requires contrast of 1500:1 or more.
Most LCD monitors do not yet offer DCI True Blacks support (in practice 'true blacks' means a very low black point suitable for video editing in a dim environment). This doesn't mean they have bad blacks in typical viewing environments, but it does mean you may experience some 'glow' in your blacks if you're viewing in a very dim environment.
Achieving very high contrast ratios is difficult and a combination of technologies is used - changes to the panel, light retardation film and backlight are all required.
This is really only of relevance in video work - in still image work, and particualrly for print, it is common practise to actually raise the monitor's black point above the minimum to better simulate the printed output.
The wider the better! Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance.
This is a highly subjective figure and we don't place much credence in it - basically, IPS panels have the best viewing angles by far, and all IPS panels sold here all have excellent viewing angles, so you won't see variance as you move you head around under normal circumstances.
The bit depth of the gamma Look Up Table. That is, the number of levels the gamma table can contain, which is crucial to the appropriate placement of tonal levels on screen. 8 bit is standard (although some appalling screens are only 6 bit!), but 10 bit or more is desirable, and the best monitors are now 14 or 16 bit.
The bit depth of the colour Look Up Tables. These are used to map incoming values from your computer to actual colours on the monitor's screen - so are of course crucial to colour accuracy. 8 bit is standard (although some appalling screens are only 6 bit!), but 10 bit or more is desirable, and the best monitors are now 14 or 16 bit. Ideally combined with 3D LUTs that can transform colours in more than one table at once.
Put simply the higher the bit depth of the LUT, the greater the capacity for accuracy.
3D Look Up Tables allow colour transformations to occur on R,G and B simultaneously, which increases speed and accuracy. Basically, a 3D LUT means better, more accurate calibrations. You want one even if it sounds like gibberish!
LCD Monitors coming off a production line typically exhibit some uniformity issues. Uniformity corrected monitors are broken into zones, measured, and each zone calibrated to be even with its neighbours (and you often get a written report of this process with very high end monitors like the Eizo CG series). Called DUE by Eizo, and most likely something else by others, it's an important part of the process of high end LCD making.
The process occurs at the begining of the monitor's life and there is currently no user system for correcting uniformity after the monitor is out in the field, although it is theoretically possible. Fortunately, moden monitors that leave the factory in a very uniform state tend to then remain uniform for many years of use.
Monitors that are not uniformity corrected may exhibit some visible artefacts like a change in density or colour across the field of the monitor. Wtih brands like Eizo and NEC, the non uniformity tends to be minor.
How quickly a pixel can change colour, in milliseconds (usually measured as grey-to-grey, but there's no real standard).
Basically, any value 16 or under is generally fine for all normal uses. Exceptions are high end gaming and possibly video production - but it's rare anything below 10 makes a significant difference, and monitors with very low response times typically sacrifice a lot of colour quality to achieve this.
Can the monitor play back a 24p video signal (i.e. 24 frames a second) - without visible motion artefacts?
Typical desktop monitors either refuse a 24p signal altogether, or force all inputs to 60hz, remapping different frame rates like 24p to 60 frames per second (usually using a technique known as 3:2 pull-down). Unfortunately, because 60 is not evenly divisible by 24, this causes significant visible motion artefacts.
A monitor with 24p support is able to play back 24p sources at either the native 24 frames a second, or using simple frame doubling/tripling to play back these sources as 48 or 72Hz. This results in smooth motion without new artefacts (n.b. - artefacts inherent to 24p, like some juddering during slow pans, remains of course, as this is inherent in the low frame rate of the original filming - but it's this low frame rate that gives the 'film like' look.
More about 24p on Wikipedia.
The input ports a monitor has. We have a comprehensive article about these (with pictures!) - here.
Other connections the monitor offers - such as audio connectors if the monitor has speakers (most don't) - and USB hubs. Some USB hubs also act as 'KVMs' - meaning you can plug your mouse and keyboard into the monitor, then the monitor into two separate computers and easily share your peripherals and screen between the two machines.
How much power the monitor draws. Often stated only as peak power usage, the real figure in practise may be lower.
Lower is better, both for your electricity bill and the planet, but typical figures of around 100W means that your monitor uses about the same as two standard downlights, so modern monitors are really very efficient compared to the hundreds of watts those old CRT clunkers used!
If a monitor hood is not included, then there are [LINK] aftermarket hoods available.
Monitor hoods stop direct light falling on the monitor which can make, in particular, shadow details harder to perceive. While not essential, once you get used to having one it's hard to go back to a screen without one - they improve the picture generally and provide a real 'window in to your image' effect.
Most colour accurate monitors don't have in built speakers.
Those that do offer speakers usually connect via 3.5mm jack (see connections), and the speaker output is usually around the 1-2w range. Fine for basic system sounds but not great for music etc.
Can the monitor be rotated on its stand 90 degrees and used in portrait orientation? Particularly useful if you're doing portrait work on smaller screens!
If the monitor & stand support this then you just rotate the screen physically and instruct your video card to flip the image 90 degrees (if you bind this to an F key on your keyboard it can be a very simple process!).
