Quite simply the benchmark monitor for imaging professionals.
This monitor features a true 4K DCI display (that's a 19:10 cinematic ratio DCI panel with 4096 by 2160 pixels - well above even the much more common 'not really 4k' UHD panels). The CG319X is specifically designed for creative professionals working to the highest standard in both still and video content work. Full DCI (Digital Cinema Initiative) resolution means you can directly edit streams from RED and similar cameras, at 1:1. This display is wide gamut and offers direct hardware calibration - meaning it can accurately display all or nearly all of modern colour spaces like Adobe1998 and DCI-P3. And of course 100% of REC 709, sRGB, EBU and SMPT-C. So it's perfect for high end work in any and all of Photography, Video Editing, 3D Editing, Compositing, Printing - really anything at all in the visual arts.
The CG319X is fully capable of automated 'set and forget' calibration - set up takes about 10 minutes and you can then rely on it, with no further intervention, for years and years to come. Indeed, at least 5 years as that's the best in the business warranty period!
Updates over the CG318 are mostly about HDR support -with HLG (hybrid log-gamma) and the PQ (perceptual quantization) curves for displaying and editing HDR (high dynamic range) video content. The in built sensor is also upgraded to better cope with the greater contrast of the CG319X, and also the HDMI ports are updated for 4k @ 60Hz support (previously only possible with DisplayPort).
The true 4K resolution gives you a vastly higher pixel density than current monitors, displaying incredibly sharp details and rendering text at almost paper like quality.
Note this monitor does have some special requirements when it comes to connecting it - you must have a video card that supports the native display resolution over DisplayPort or HDMI. This means a modern Mac with a Display Port enabled Thunderbolt or USB-C port (do check your Macs spec page online to make sure it supports the full resolution & 60 Hz refresh rate!) - or a PC with an up to date, high bandwidth video card (we recommend the NVIDIA Qaudro workstation cards - very stable drivers and excellent 10 bit support).
All Eizo monitors come backed by a manufacturer’s five-year warranty.
About the ColorEdge CG318X, Eizo say:
The CG319X can be summed up as: HDR video editing and colour-accurate photo display in 4K resolution for creating a truly immersive experience.
The monitor comes equipped with HLG and PQ gamma curve for editing HDR video content, and wide colour gamut for vibrant images.
Built-In Sensor for Workflow Automation
The built-in sensor allows you to calibrate the CG319X automatically at designated times to ensure your screen stays colour-accurate. There is no need for an external calibration device.
Start Working as soon as You Switch On
A typical monitor takes 30 minutes or more for its brightness, chromaticity, and tone characteristics to stabilize. The ColorEdge CG319X takes a mere 3 minutes, which means you get reliable colour display soon after turning the monitor on.
Professional DCI 4K Resolution
The ColorEdge CG319X displays the DCI 4K standard (4096 x 2160) which is more than four times that of full HD (1920 x 1080). It's ideal for creating, editing, and referencing with 2D and 3D CGI, VFX, compositing, and colour grading.
True Black Display
Complying with the DCI standard, the ColorEdge CG319X offers a high contrast ratio of 1500:1 for producing true blacks that are otherwise difficult to display on a typical LCD monitor. When viewing the screen from an angle in a dimly lit room, dark tones typically appear washed out due to the display characteristics of LCD backlights. The CG Series is equipped with a retardation film which allows tones to retain their depth even when viewed from an angle.
HDR Gamma Support
The ColorEdge CG319X is equipped with HLG (hybrid log-gamma) and the PQ (perceptual quantization) curve for displaying and editing HDR video content. The optimized gamma curves render images to appear truer to how the human eye perceives the real world compared to SDR (standard dynamic range). Professional creators can now reliably display HDR content for editing and colour grading.
Vivid Colours Reproduced to Industry Standards
This wide-gamut monitor faithfully reproduces 98% of the DCI-P3 standard used in digital cinema and supports the Rec. 2020 standard used in broadcasting. It also covers 99% of the Adobe RGB colour space so images shot in Adobe RGB will be displayed correctly. The wide colour gamut also ensures reproduction of almost the entire ISO-coated and US web-coated CMYK colour spaces used in printing.
24 BIT LUT for Accurate Colour Display
A 3D LUT is included which adjusts colours individually on an RGB cubic table. With the supported ColorNavigator NX software’s emulation function, creators can check how content will appear to their audience. The 24 BIT LUT also improves the monitor's additive colour mixture (combination of RGB), which is a key factor in its ability to display neutral grey tones.
With 10-bit simultaneous display from a 24-bit look-up-table (LUT), the ColorEdge CG319X can show more than one billion colours simultaneously. This results in smooth colour gradations and reduced Delta-E between two adjacent colours.
Large 31.1" Screen
Whether you are creating, editing, or checking your work, this screen offers ample space to focus on 4K content. At a dense 149 ppi, it’s suited for not only video editing but also photo retouching and printing.
The ColorEdge CG319X includes a PQ and HLG Clipping function that shows the areas of an image which display at brightness levels higher than the current setting. The areas which cannot be displayed at the correct brightness with the current settings shown in yellow or magenta. PQ and HLG Clipping can be viewed for brightness levels of 300, 500, 1000, and 4000 cd/m2.
Safe Area Marker
A safe area marker designates the area of the screen that will be displayed when the monitor is connected to a particular device. This allows you to check that subtitles and other text will be visible. The colour of the marker is changeable to ensure it remains with any imagery.
An aspect marker designates the areas of the screen size that will be shown on a display device when you input DCI 4K (4096 x 2160) or DCI 2K (2048 x 1080). This allows you to confirm how the screen size and composition of the scene will appear in other viewing environments. Aspect ratios 1.85:1, 2.35:1, and 2.39:1 can be selected.
4K Zoom Function
Enlarge areas of the screen to confirm small details and check focus accuracy in photos using the 4K zoom function. It is quickly and easily accessible using the monitor’s front buttons.
Broadcast and Cinema Presets
Preset modes for DCI-P3, Rec. 709, and Rec. 2020 ensure you can work in the appropriate colour spaces and gamma values. In addition, preset modes for PQ (DCI and Rec. 2100) and HLG (Rec. 2100) are available for viewing HDR content. With the built-in calibration sensor, you can conveniently adjust or maintain the brightness setting for each preset.
Rec. 709 Out of Gamut Warning
The monitor includes a Gamut Warning preset. When selected, the areas of a Rec. 2020 image that cannot be reproduced using Rec. 709 are clearing indicated by converting them to shades of grey. An additional mode called Rec. 709 Clipping allows the editor to view Rec. 2020 images within the Rec. 709 colour space, simulating how it would look to their audience in an HDTV environment.
Adjusted at the Factory for Smooth Colour Gradations
The gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 24-bit look-up-table (LUT) to select the most appropriate tones and achieve the desired value. This ensures the smoothest colour gradations in your images.
Stable Display Using Industry-First AI
The colour and brightness of an LCD monitor can shift due to changes in ambient temperature and the temperature of the monitor itself. ColorEdge monitors are equipped with a temperature sensor for accurately measuring the temperature inside the monitor, as well as estimating the temperature of the surrounding environment. With this temperature sensing and estimation technology, the monitor adjusts in real-time so gradations, colour, brightness, and other characteristics continue to be displayed accurately. Furthermore, EIZO uses AI (artificial intelligence)* in the estimation algorithm of the CG319X so it can distinguish between various temperature changing patterns to calculate even more accurate correction.
Uniformity Across the Screen
Fluctuations in brightness and chromaticity on different parts of the screen are a common trait of LCD monitors. To counteract this, ColorEdge monitors are equipped with EIZO's patented digital uniformity equalizer (DUE) technology to ensure stable image display and counterbalance the influences that a fluctuating temperature may have on colour temperature and brightness for stable image display.
The ColorEdge CG319X is equipped with two DisplayPort and two HDMI inputs. It supports various video formats of up to 10-bit 4:4:4 at 50/60p via DisplayPort and 10-bit 4:2:2 at 50/60p via HDMI.
Minimized Reflections with Non-Glare Panel
The monitor is equipped with an IPS non-glare panel for high visibility. It also uses dimming technology to minimize flicker and help prevent eye fatigue for a more comfortable working environment.
And there’s more:
Panel Size / Ratio
31" / DCI Native (1.9:1)
4096 * 2160 (DCI 4K)
Direct Hardware Calibration?
In Built Sensor?
Adobe RGB: 99%, DCI-P3:98%
This monitor supports Direct Hardware Calibration. It includes a built-in full calibration sensor.
This is the ideal way to calibrate a monitor - it's easy, fully automatic, and can be scheduled to occur even when you're not present and your computer is switched off! Simply set it up once and enjoy accurate colour with no further intervention for years to come!
An external calibrator is not required. However, if you wish to, you can cross correlate with an external calibrator. We list recommended models here. You would only do this under special circumstances.
We recommend the i1Display Pro / Pro Plus.i1 Display Pro Plus
These calibrators are either simply not compatible, or do not measure current monitor technologies reliably. If you have one of these, it's time for an upgrade!i1 Display V1 & V2
Please note: Specifications are provided as a guide only.
We try very hard to keep these up to date and correct, but if a particular specification is really critical to you, then please double check the specification directly with the manufacturer. Some features may of course have caveats not fully described here.
To get more information about a particular specification, use the arrow to get a 'Specxplanation'.
Monitor panel sizes are measured across the diagonal, in inches.
They are approximate only, so the actual measurement might be 27.1" for example. Note that panel size in inches is only one part of the story - the other being the aspect ratio. For example a 24" monitors doesn't sound much bigger than a 23" monitor, but 24" monitors are normally 16:10 versus most 23" monitors being 16:9. This means a 24" monitor is much taller than a 23" and the working size is much greater than one inch difference would suggest.
The panel ratio gives the relative size of the horizontal to the vertical. Older monitors were 4:3, but most modern monitors are widescreen, with 16:10 or 16:9 being the common ratios. 16:10 is distinctly taller, and common with 24 and 30 inch monitors. 23 and 27 inch monitors are normally 16:9 - the same ratio as widescreen televisions. For monitors 24 inches and below, we recommend going with a 16:10 monitor if you can. Once you're over 24 inches you've got sufficient vertical working space it doesn't matter so much.
Native resolution is simply the number of pixels a monitor has, stated as horizontal x vertical.
LCD monitors really want to receive their native resolution and look pretty terrible when scaling other resolutions to the native resolution of the panel.
Most modern computers have no trouble outputting up to 2560 by 1600 (e.g. all Mac Pros/Macbooks/Minis/Airs etc. from the last 5 years or so can do this without issue, usually to 2 or more displays simultaneously). The only time it becomes particularly important is with older machines, particularly laptops, many have a maximum external display resolution of 1920 by 1200. If in doubt send us the full model number of your laptop and we can double check this for you!
There are three major types of monitor panels. IPS (aka PLS) - are the best for image makers. They have the best colour accuracy and uniformity characteristics. The can sometimes have weaker blacks, so gamers and video editors sometimes lean towards PVA monitors. However these days good IPS panels have excellent blacks so we recommend that all image makers use an IPS panel. The latest panel type, TN, is generally only used in laptops and low end devices and should avoided for imaging work at all costs!
The two major types of backlighting are CCFL (Flourescent tube based) and LED. CCFL is the older type of light source and offers good uniformity and it has been traditionally easier to engineer colour accuate monitors with flourescent tubes. However recent LED backlit monitors can be excellent - very uniform, and of course they use much less power. The latest LED backlit monitors from the good makers now offer excellent colour accuracy - at least as good as the older CCFL models.
LEDs also uses significantly less power (although CCFL monitors are already much better than old CRTs of course!) - and tend to have better uniformity.
Whether or not the unit needs a fan for cooling. Most monitors fortunately don't need a fan, rather using passive cooling through heatsinks and vents.
However, some monitors do require a fan, which can be of concern given the monitors proximity to your ears. Generally the fan will be a low dB fan not audible above a typical computer fan, but if ambient noise is of concern to you the we suggest you choose a monitor without a cooling fan.
Calibration is the process of calibrating directly into the monitor's hardware. This is both more accurate, and typically more easy to do, than traditional software calibration. See the 'Calibration Information' section above for more details about this monitor and calibration.
In built correction sensors come in two forms:
Until around 2010, almost all monitors were 'standard gamut' - meaning they could display a moderate range of colours (roughly around the size of the sRGB colour space). In recent years we've seen the development of wide gamut monitors that can display a much wider range of saturated colours (about 25% more) - equivalent to approximately the gamut of AdobeRGB.
We recommend wide gamut monitors for all image makers, but especially for anyone working regularly with saturated colour. Wide gamut monitors can also emulate standard gamut monitors very well, so it's more future proof to choose a wide gamut model, and there really aren't any disadvantages (apart from the generally higher price of wide gamut models!).
Does the monitor accept a 10 bit incoming video signal? 10 bit video signals allow for more tonal level separation (i.e. smoother gradients).
PC: 10 bit is well supported and relatively easy to achieve with 'workstation' graphic cards (short version: buy an nvidia Quadro video card!).
Mac: 10 bit has only just become supported in 2016 - you'll need very up to date Mac hardware, and the latest versions of OSX and your apps.
Our comprehensive article on 10 bit support has all the details.
The maximum achievable ratio of the brightness of a monitor's white to the depth of it's black. The stated figure is a maximum, achieved only when the monitor is running at high brightness in a darkened room.
A high contrast ratio makes things looks more contrasty (i.e. more 'pop') and is particularly of note with gaming, video, and image display scenarios. For example, if you're selling photos to clients straight off your screen, then high contrast has more wow factor.
However, for print work, it is typical practice to dramatically reduce the monitors contrast to as low as, say, 200:1 to better simulate paper. This is best done with monitors that feature direct hardware calibration support and allow you to specify the desired contrast ratio.
The maximum achievable brightness of the monitor in candellas per metre squared.
It is VERY unusual to run a monitor at maximum brightness, especially for imaging work.
The DCI (Digital Cinema Initiative) specifications requires contrast of 1500:1 or more.
Most LCD monitors do not yet offer DCI True Blacks support (in practice 'true blacks' means a very low black point suitable for video editing in a dim environment). This doesn't mean they have bad blacks in typical viewing environments, but it does mean you may experience some 'glow' in your blacks if you're viewing in a very dim environment.
Achieving very high contrast ratios is difficult and a combination of technologies is used - changes to the panel, light retardation film and backlight are all required.
This is really only of relevance in video work - in still image work, and particualrly for print, it is common practise to actually raise the monitor's black point above the minimum to better simulate the printed output.
The wider the better! But as usual, on paper specifications tell you just about nothing about the actual performance.
Viewing angle is the maximum angle at which a display can be viewed with 'acceptable visual performance'. In the context of this specification, all that means is that the 'contrast ratio remains above 10:1' (which is laughably low). This is really a meaningless specification with regards to the colour accuracy of a monitor when viewed off angle.
Thus, we don't place any credence in the manufacturer stated numbers. Simply though, IPS panels have the best viewing angles by far, and all IPS panels sold here all have (relative to low quality monitors) excellent viewing angles for this type of monitor, so you won't see significant variance as you move you head around under normal circumstances (movements of 15 or so degrees, say). In general you and a colleague could sit side by side (closely) and work acceptably together on an image. Beyond that, though, like all LCD monitors, accurate display will drop off very quickly once you move off angle. That is simply a fact of life with LCDs, even the best ones.
Ironically, monitors with lower black points tend to be slightly worse in this area (e.g. the CGX range from Eizo) - as often part of achieving the low blacks is the use of a polarising film over the panel. As anyone who has ever used a polarising filter with a camera knows, the effect of such a filter is highly directional. Thus as you move off axis, you will therefore see change more quickly.
The bit depth of the gamma Look Up Table. That is, the number of levels the gamma table can contain, which is crucial to the appropriate placement of tonal levels on screen. 8 bit is standard (although some appalling screens are only 6 bit!), but 10 bit or more is desirable, and the best monitors are now 14 or 16 bit.
The bit depth of the colour Look Up Tables. These are used to map incoming values from your computer to actual colours on the monitor's screen - so are of course crucial to colour accuracy. 8 bit is standard (although some appalling screens are only 6 bit!), but 10 bit or more is desirable, and the best monitors are now 14 or 16 bit. Ideally combined with 3D LUTs that can transform colours in more than one table at once.
Put simply the higher the bit depth of the LUT, the greater the capacity for accuracy.
3D Look Up Tables allow colour transformations to occur on R,G and B simultaneously, which increases speed and accuracy. Basically, a 3D LUT means better, more accurate calibrations. You want one even if it sounds like gibberish!
LCD Monitors coming off a production line typically exhibit some uniformity issues. Uniformity corrected monitors are broken into zones, measured, and each zone calibrated to be even with its neighbours (and you often get a written report of this process with very high end monitors like the Eizo CG series). Called DUE by Eizo, and most likely something else by others, it's an important part of the process of high end LCD making.
The process occurs at the begining of the monitor's life and there is currently no user system for correcting uniformity after the monitor is out in the field, although it is theoretically possible. Fortunately, moden monitors that leave the factory in a very uniform state tend to then remain uniform for many years of use.
Monitors that are not uniformity corrected may exhibit some visible artefacts like a change in density or colour across the field of the monitor. Wtih brands like Eizo and NEC, the non uniformity tends to be minor.
How quickly a pixel can change colour, in milliseconds (usually measured as grey-to-grey, but there's no real standard).
Basically, any value 16 or under is generally fine for all normal uses. Exceptions are high end gaming and possibly video production - but it's rare anything below 10 makes a significant difference, and monitors with very low response times typically sacrifice a lot of colour quality to achieve this.
Can the monitor play back a 24p video signal (i.e. 24 frames a second) - without visible motion artefacts?
Typical desktop monitors either refuse a 24p signal altogether, or force all inputs to 60hz, remapping different frame rates like 24p to 60 frames per second (usually using a technique known as 3:2 pull-down). Unfortunately, because 60 is not evenly divisible by 24, this causes significant visible motion artefacts.
A monitor with 24p support is able to play back 24p sources at either the native 24 frames a second, or using simple frame doubling/tripling to play back these sources as 48 or 72Hz. This results in smooth motion without new artefacts (n.b. - artefacts inherent to 24p, like some juddering during slow pans, remains of course, as this is inherent in the low frame rate of the original filming - but it's this low frame rate that gives the 'film like' look.
More about 24p on Wikipedia.
The input ports a monitor has. We have a comprehensive article about these (with pictures!) - here.
Other connections the monitor offers - such as audio connectors if the monitor has speakers (most don't) - and USB hubs. Some USB hubs also act as 'KVMs' - meaning you can plug your mouse and keyboard into the monitor, then the monitor into two separate computers and easily share your peripherals and screen between the two machines.
How much power the monitor draws. Often stated only as peak power usage, the real figure in practise may be lower.
Lower is better, both for your electricity bill and the planet, but typical figures of around 100W means that your monitor uses about the same as two standard downlights, so modern monitors are really very efficient compared to the hundreds of watts those old CRT clunkers used!

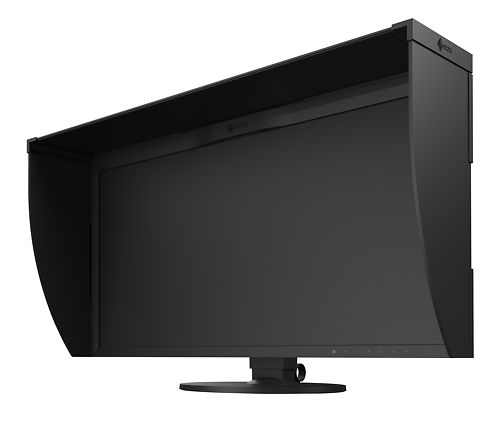

If a monitor hood is not included, then there are [LINK] aftermarket hoods available.
Monitor hoods stop direct light falling on the monitor which can make, in particular, shadow details harder to perceive. While not essential, once you get used to having one it's hard to go back to a screen without one - they improve the picture generally and provide a real 'window in to your image' effect.
Most colour accurate monitors don't have in built speakers.
Those that do offer speakers usually connect via 3.5mm jack (see connections), and the speaker output is usually around the 1-2w range. Fine for basic system sounds but not great for music etc.
Can the monitor be rotated on its stand 90 degrees and used in portrait orientation? Particularly useful if you're doing portrait work on smaller screens!
If the monitor & stand support this then you just rotate the screen physically and instruct your video card to flip the image 90 degrees (if you bind this to an F key on your keyboard it can be a very simple process!).
We keep these details up to date to the best of our knowledge.
However if a particular item is of special importance to you please also check the manufacturer's listing for the product.
